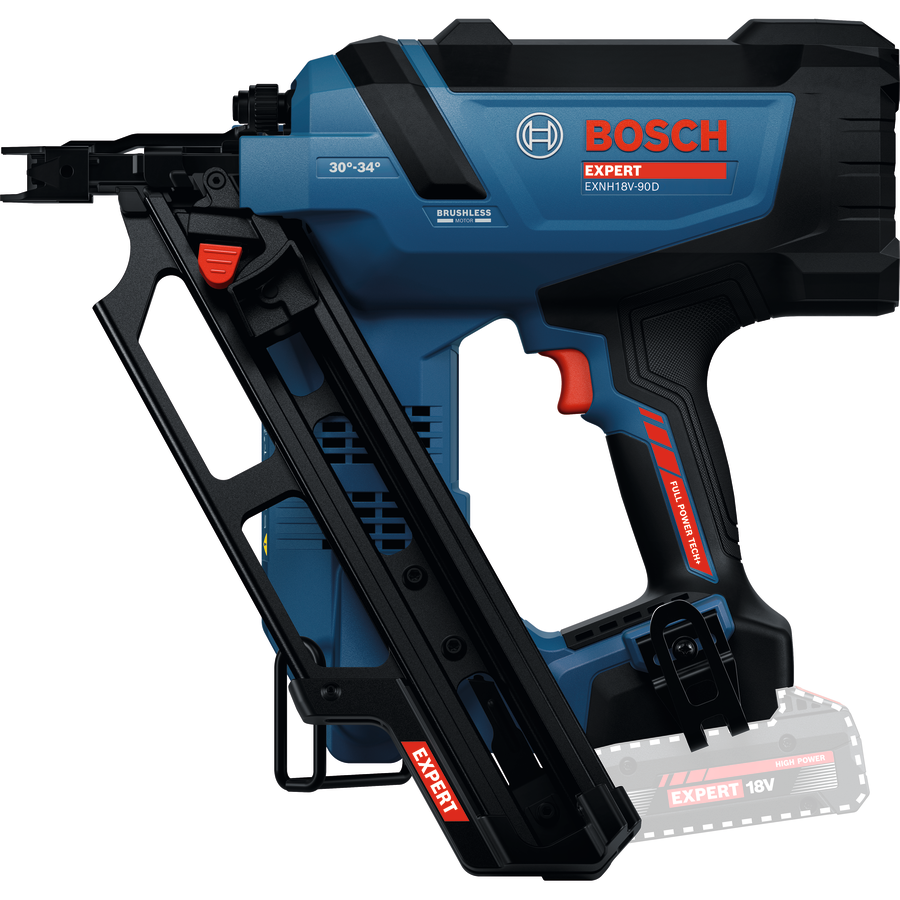

Bosch Expert EXNH18V-90D cordless framing nailer, solo

Cordless freedom with pneumatic tool power.

The Bosch EXPERT EXNH18V-90D is a professional 18 V gas-free framing nailer that combines the convenience of a cordless tool with the performance of a pneumatic nail gun. Its air-spring system and user-refillable air tank deliver consistent driving power, allowing you to drive nails up to 90 mm without gas cartridges.

The integrated Schrader valve enables quick on-site air tank refilling, minimizing maintenance downtime and ensuring maximum performance throughout the workday. Eliminating gas cartridges reduces operating costs and prevents exposure to harmful fumes.

Key features

• Pneumatic-equivalent performance thanks to the 18 V air-spring system
• Consistently drives D-head strip nails up to 90 mm
• Full Power Tech+ with integrated Schrader valve for quick air tank refilling
• High-grip nose provides secure positioning, even when nailing at an angle
• No-mar tip protects finished surfaces and timber from damage
• Standard magazine holds up to 58 nails; extended magazine available for higher capacity
• Includes belt hook and large rafter hook for convenient work at height
• No gas cartridges required – lower operating costs and a cleaner working environment

Product highlights

The EXPERT EXNH18V-90D is designed for professionals who need a powerful and reliable framing nailer without the need for a compressor or gas cartridges. Its high-performance 18 V air-spring system drives nails up to 90 mm with the confidence of a pneumatic tool.

Full Power Tech+ technology with an integrated Schrader valve allows the air tank to be quickly refilled to the recommended pressure, ensuring consistent driving power while minimizing downtime. The high-grip nose makes angled nailing easier, while the no-mar tip protects finished surfaces from unwanted marks.

The standard magazine holds up to 58 nails, while an extended magazine with higher capacity is available as an accessory for longer work cycles. The tool is compatible with the Bosch Professional 18V System and AMPShare battery platform.

Applications

• Wood frame construction
• Roof framing
• Subfloor installation
• Timber structure assembly
• General construction and carpentry work

Technical specifications

• Battery voltage: 18 V
• Magazine angle: 34°
• Nail diameter: 2.8–3.3 mm
• Nail length: 50–90 mm
• Nail type: D-head strip nails
• Trigger mode: Full sequential actuation
• Magazine capacity: 58 nails
• Weight without battery: 4.5 kg
• Sound pressure level: 97 dB(A)
• Sound power level: 108 dB(A)
• Uncertainty (K): 3 dB
• Package dimensions: 394 × 607 × 238 mm
• Compatible nails: Bosch D-head strip nails
