FC-S System Accessories Bosch GDE 230 FC-S

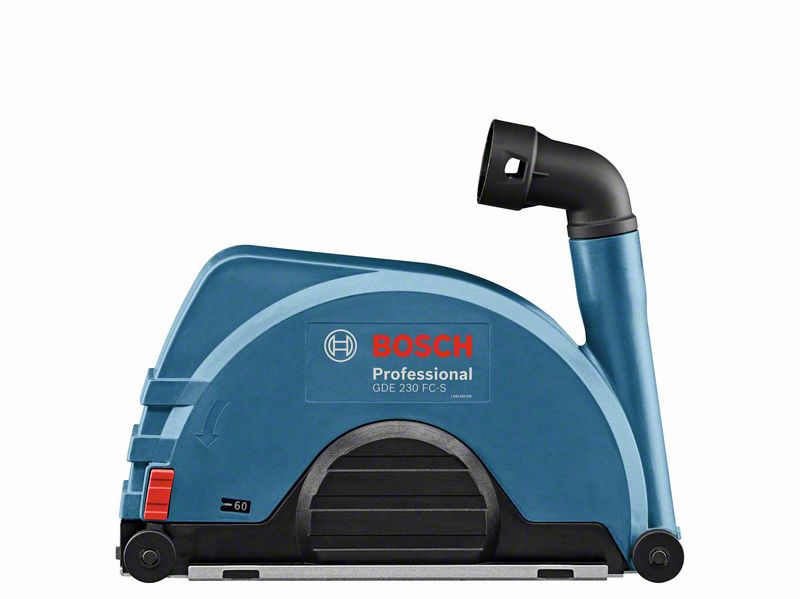

The GDE 230 FC-S Professional is Bosch's full cover dust guard for angle grinders with standard protective guards and 230-mm disc diameters. Its full cover shape provides enhanced dust extraction for virtually dust-free work. A convenient 360°-connection between the angle grinder and dust extractor enables easy handling. Adjustable cutting depths and integrated wheels support precise work. The dust guard is compatible with the Bosch Click & Clean System as well as a multitude of angle grinders with standard protective guards.

Key features

• Virtually dust-free work thanks to full cover shape and enhanced dust extraction
• Convenient 360°-connection between angle grinder dust extractor enables easy handling
• Adjustable cutting depths and integrated wheels support precise work

Technical data

• Suitable for cutting disc diameter: 230 mm
• Maximum cutting depth: ~ 60 mm
• Compatible with: GWS 20-230 H/J/JH/P; GWS 21-230 H/HV/JH/JHV; GWS 22-230 H/J/JH/P; GWS 24-230 B/BV/BX/H/J/JB/JBV/JBX/JH/JZ/P/PZ; GWS 26-230 B/BV/H/JH; GWS 2000 J/P (Ø 230mm); GWS 2200 J/P (Ø 230mm); GWS 2400 J/P (Ø 230mm); EXWS18V2-230P
• Weight: 2.1 kg
• Compatibility type of protection guard: Protective guard with locking screw
• Packaging dimensions (width x length x height): 82 x 329 x 266 mm
