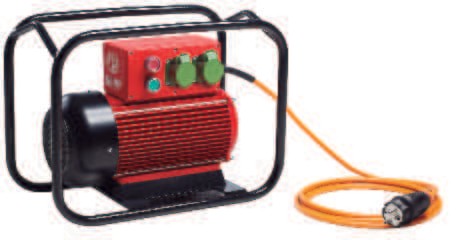

High-Frequency Converter Hervisa Perles CAF150 2T, 400 V, 2 outputs

The Hervisa Perles CAF150 2T is a three-phase magnetic high-frequency converter for 42 V concrete pokers. The lightweight aluminium housing acts as a heat sink, the tubular steel frame protects the converter and makes transport easy, and the start-stop buttons with thermal relay protect against phase failure.

Key features

• Magnetic converter
• Lightweight aluminium housing with heat sink
• Tubular steel frame for protection and transport
• High-performance electric motor
• Start-stop buttons with thermal relay, phase failure protection
• The sum of the connected pokers’ current must not exceed the converter output current

Technical data

• Input: three-phase 400 V 50 Hz
• Output: 42 V 200 Hz 3Ph
• Power: 1.5 kVA
• Current: 21 A
• Outlets: 2
• Max pokers connected: 2 pcs ø52 or 1 pcs ø75
• Supply cable: 5 m
• Protection: IP44
• Weight: 32 kg
