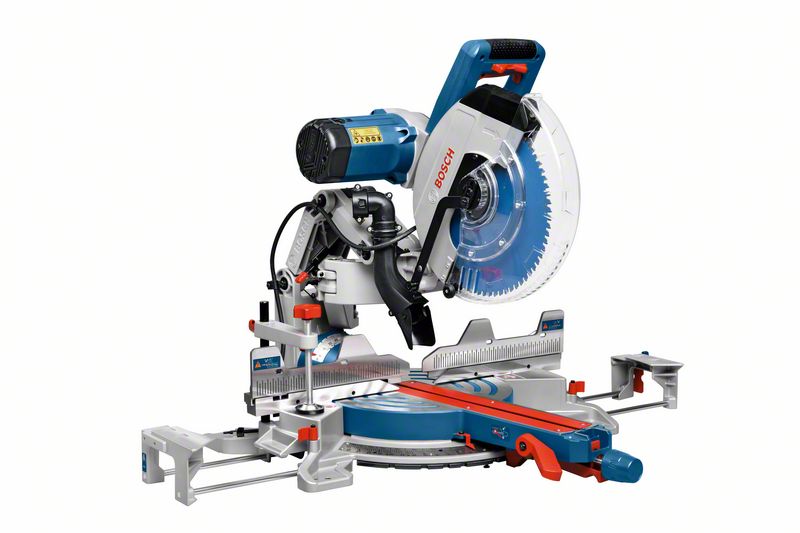

Mitre saw Bosch GCM 12 GDL

The GCM 12 GDL Professional, which delivers the most precise cutting results of all Bosch products, is the best choice for jobs requiring the highest precision. The mitre saw's innovative maintenance-free glide arm is extremely strong and highly durable. Thanks to the hinged design of the glide arm, the GCM 12 GDL Professional is compact from end to end. This mitre saw with double laser and high-quality saw blade ensures very precise cuts and a cutting depth of up to 170 x 140 mm for L-profiles (maximum thickness should be 36 mm).

Key features

• Innovative maintenance-free glide arm is very strong and ensures lasting precision
• Thanks to the hinged design of the glide arm, the mitre saw is compact from end to end
• Double laser and high-quality saw blade allow very precise cuts

Technical data

• Cutting capacity 0°: 104 x 341 mm
• Cutting capacity at 45° bevel: 104 x 240 mm
• Cutting capacity at 45° mitre: 51 x 341 mm
• Mitre angle adjustment: 52 ° V / 60 ° P
• Bevel angle adjustment: 47 ° V / 47 ° P
• Tool dimensions (length × width × height): 670 x1100 x740 mm
• No-load speed: 4.000 rpm
• Saw blade diameter: 305 mm
• Blade bore Ø: 30 mm
• Weight: 29,4 kg
• Rated power: 2 000 W
• Voltage: 230 V
• Packaging dimensions (width × length × height): 670 x 1100 x 740 mm
• Vibration ah: 2,5 m/s²
• Uncertainty K: 1,5 m/s²

Scope of delivery

• Screw Order number: 1 609 B00 263
• Hex key (order number 1 609 B00 256)
• Stop plate Order number: 1 609 B02 365
• Insert plate (order number 1 609 B02 375)
• Screw clamp Order number: 1 609 B06 203
• 1 x circular saw blade, Expert for Wood, 305 x 30 x 2,4 mm, 72 Order number: 2 608 642 531
