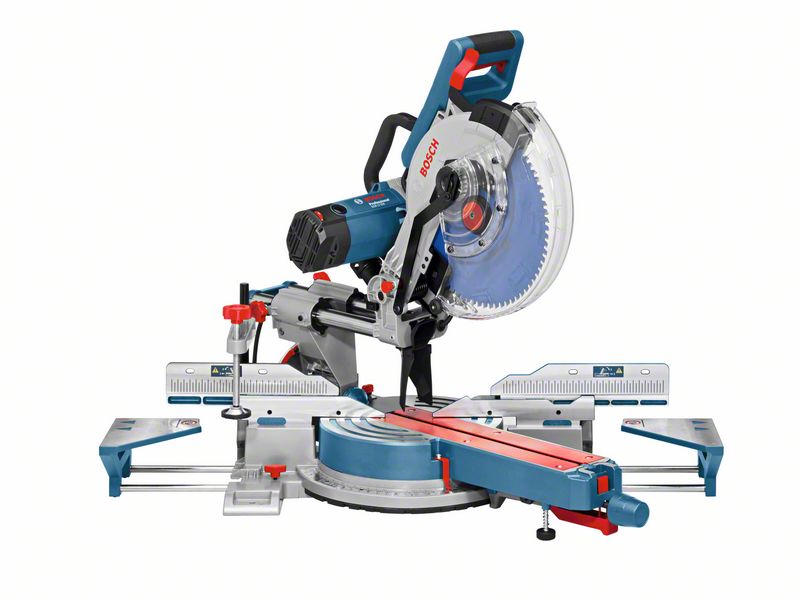

Mitre saw Bosch GCM 12 SDE

The GCM 12 SDE Professional makes working with large workpieces easier. Its extremely large cutting capacity (120 mm vertically and 400 mm horizontally) allows very large, bulky objects to be cut. Thanks to the mitre saw's variable cutting speed, the GCM 12 SDE Professional is very versatile and suitable for a wide range of materials. The tool is very convenient to use, as its saw blades can be changed quickly without tools.

Key features

• Extremely large cutting capacity (120 mm vertically and 400 mm horizontally) allows very large workpieces to be cut
• Variable cutting speed ensures versatility with different materials
• Thanks to the fast tool-free saw blade change, the saw is easy and convenient to handle

Technical data

• Cutting capacity 0°: 85 x 370 mm
• Max. cuts with spacer (maximum vertical) at 0°: 120 x 200 mm
• Max. cuts with spacer (maximum horizontal) at 0°: 70 x 400 mm
• Cutting capacity at 45° bevel: 85 x 250 mm
• Cutting capacity at 45° mitre: 60 x 360 mm
• Mitre angle adjustment: 52 ° V / 60 ° P
• Bevel angle adjustment: 47 ° V / 47 ° P
• Tool dimensions (length × width × height): 860 x600 x530 mm
• No-load speed: 3.100 – 4.000 rpm
• Saw blade diameter: 305 mm
• Blade bore Ø: 30 mm
• Weight: 28,6 kg
• Rated power: 1 800 W
• Voltage: 220 – 240 V
• Packaging dimensions (width × length × height): 860 x 600 x 530 mm
• Vibration ah: 2,5 m/s²
• Uncertainty K: 1,5 m/s²

Scope of delivery

• Screw clamp Order number: 1 609 B06 203
• 1 x circular saw blade, Expert for Wood, 305 x 30 x 2,4 mm, 72 Order number: 2 608 642 531
