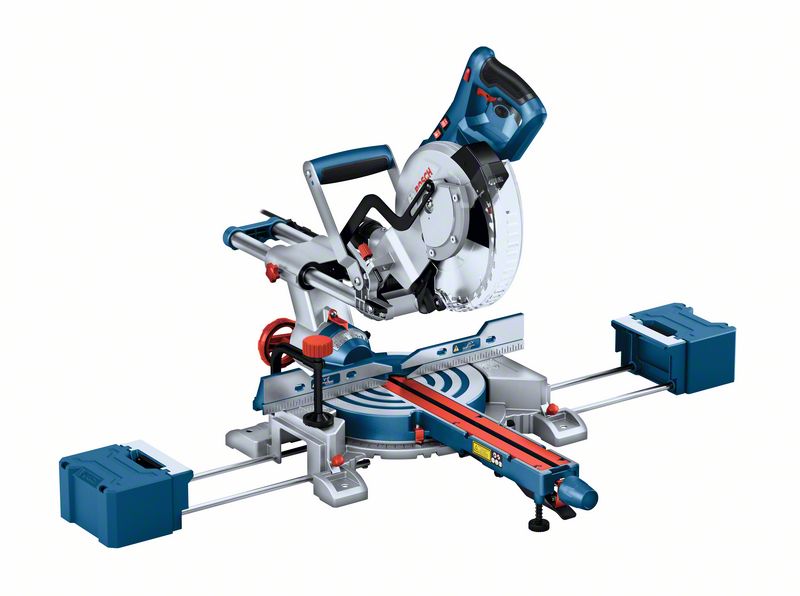

Mitre saw Bosch GCM 305-216 D, Carton

The GCM 305-216 D Professional offers remarkable cutting performance thanks to its powerful motor. This portable mitre saw is a reliable tool that, with removable workpiece supports and long table extensions, can also better handle long materials during cutting. Thanks to the double bevel function and ergonomic bevel lock wheel, even complex cuts are more comfortable and flexible.

Key features

• Enough cutting performance even for the toughest cuts
• Removable workpiece supports and long table extensions make it easy to maintain control over long materials during cutting
• Comfortable and flexible for complex cuts thanks to the double bevel function

Technical data

• Cutting capacity 0°: 70 x 305 mm
• Cutting capacity at 45° bevel: 70 x 215 mm
• Cutting capacity at 45° mitre: 42 x 305 mm
• Mitre angle adjustment: 48 ° V / 48 ° P
• Bevel angle adjustment: 47 ° V / 47 ° P
• Tool dimensions (length × width × height): 464 x770 x606 mm
• No-load speed: 5.200 rpm
• Saw blade diameter: 216 mm
• Blade bore Ø: 30 mm
• Weight: 16,8 kg
• Rated power: 1 200 W
• Voltage: 220 – 240 V
• Packaging dimensions (width × length × height): 464 x 770 x 606 mm

Scope of delivery

• 2 x workpiece support (flexible, plug-in) Order number: 1 609 B07 675
• Screw clamp Order number: 1 609 B06 930
• Dust bag Order number: 2 608 000 841
• 1 x circular saw blade, Optiline Wood, 216 x 30 x 2,8 mm, 24 Order number: 2 608 640 431
