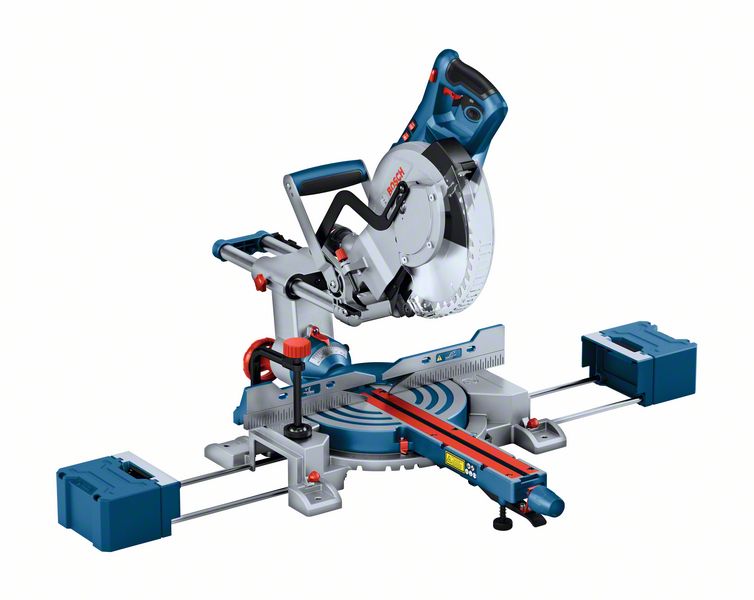

Mitre saw Bosch GCM 305-254 D, Carton

With its powerful motor, the GCM 305-254 D Professional offers enough cutting performance even for the most ambitious cuts. Removable workpiece supports and long table extensions make it easy to cut long materials with the portable mitre saw. Double bevel settings and an ergonomic bevel lock wheel ensure greater comfort and flexibility when making complex cuts.

Key features

• Remarkable cutting performance even for the toughest cuts
• Removable workpiece supports and long table extensions make it easy to maintain control over long materials during cutting
• Double bevel function for more comfortable cutting

Technical data

• Cutting capacity 0°: 90 x 305 mm
• Cutting capacity at 45° bevel: 90 x 215 mm
• Cutting capacity at 45° mitre: 55 x 305 mm
• Mitre angle adjustment: 48 ° V / 48 ° P
• Bevel angle adjustment: 47 ° V / 47 ° P
• Tool dimensions (length × width × height): 500 x787 x662 mm
• No-load speed: 4.500 rpm
• Saw blade diameter: 254 mm
• Blade bore Ø: 30 mm
• Weight: 19,8 kg
• Rated power: 1 500 W
• Voltage: 220 – 240 V
• Packaging dimensions (width × length × height): 500 x 787 x 662 mm

Scope of delivery

• 2 x workpiece support (flexible, plug-in) Order number: 1 609 B07 675
• Screw clamp Order number: 1 609 B06 932
• 1 x circular saw blade, Standard for Wood, 254 x 30 x 2 mm, 40 Order number: 2 608 640 435
• Dust bag Order number: 2 608 000 841
