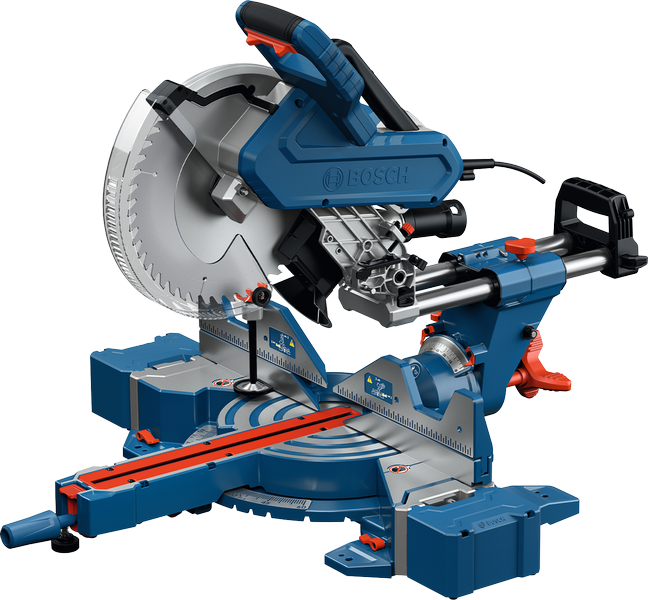

Mitre saw Bosch GCM 340-305 D, CT

If you are looking for a mitre saw with strong cutting capacity and long-lasting precision, look no further than the GCM 340-305D Professional. Its integrated LED light system provides an adjustment-free cutting line indication that ensures long-lasting precision. This tool makes workpiece control easy regardless of the size of the materials, thanks to the removable workpiece support and long table extensions. Cutting large wooden workpieces is no problem either with the heavy-duty GCM 340-305D, whose powerful motor effortlessly handles even the toughest cut.

Key features

• Long-lasting precision thanks to the integrated LED light system with reliable cutting line indicator. Easy workpiece control for different material sizes thanks to the removable workpiece support and long-reach extensions. Easy cutting – even with large wooden workpieces – thanks to strong cutting capacity driven by a powerful motor

Technical data

• Cutting capacity 0°: 105 x 340 mm
• Cutting capacity at 45° bevel: 105 x 245 mm
• Cutting capacity at 45° mitre: 340 mm
• Mitre angle adjustment: 52 ° V / 60 ° P
• Bevel angle adjustment: 47 ° V / 47 ° P
• Tool dimensions (length × width × height): 617 x885 x709 mm
• No-load speed: 4.050 rpm
• Saw blade diameter: 305 mm
• Blade bore Ø: 30 mm
• Weight: 21,4 kg
• Rated power: 1 800 W
• Voltage: 220 – 240 V
• Packaging dimensions (width × length × height): 518 x 950 x 550 mm

Scope of delivery

• Clamp Order number: 1 619 PC5 274
• 1 × clamp key Order number: 1 619 PC5 116
• 1 × dust extractor adapter Order number: 1 619 PC5 054
• For blade 000/030/040/070/0D0/0E0/0G0/0H0 Order number: 2 608 846 525
• Measuring ruler Order number: 1 619 PB9 141
• 2 x support blocks Order number: 1 619 PC5 276
• Dust bag Order number: 1 619 PB6 246
