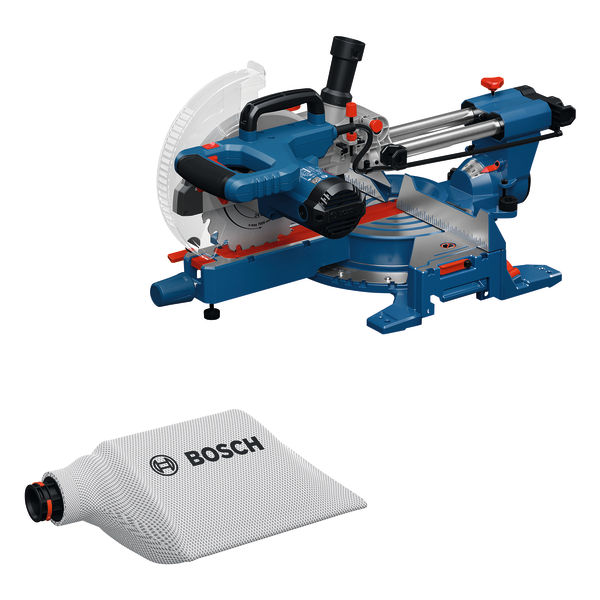

Mitre saw Bosch GCM305-216S, CT

Carpenters and joiners, wood floor installers, foundation and structural workers and facility management specialists know that maintaining cutting accuracy with mitre saws can be difficult. In addition, conventional rear bevel adjusters force you to change your position with every angle change. The powerful PRO GCM305-216S corded mitre saw is designed to make your work easier: its integrated LED light system ensures long-lasting cutting accuracy by indicating the cutting line, saving time and effort. The front-access bevel adjuster lets you change angles quickly and easily, keeping your workflow efficient. The PRO GCM305-216S corded mitre saw also has a removable workpiece support (optional) and side extensions that ensure stable control with large materials, making every cut smooth.

Key features

• Long-lasting cutting accuracy: with an integrated LED light system that shows the user the cutting line and requires no manual adjustment
• Keep your workflow efficient: the front-access bevel adjuster lets you change angles quickly and easily
• Professional performance in your hands: the motor provides enough cutting power for the toughest cuts
• Work effortlessly with large wooden workpieces thanks to the removable workpiece support (optional) that supports longer boards

Technical data

• Cutting capacity 0°: 70 x 315 mm
• Cutting capacity at 45° bevel: 70 x 215 mm
• Cutting capacity at 45° mitre: 40 x 305 mm
• Mitre angle adjustment: 48 ° V / 48 ° P
• Bevel angle adjustment: 47 ° V / 2 ° P
• Tool dimensions (length × width × height): 493 x747 x391 mm
• No-load speed: 4.320 – 5.280 rpm
• Saw blade diameter: 216 mm
• Blade bore Ø: 30 mm
• Weight: 15,3 kg
• Voltage: 220 – 240 V
• Packaging dimensions (width × length × height): 548 x 807 x 413 mm

Scope of delivery

• 1 x circular saw blade, Optiline Wood, 216 x 30 x 2,8 mm, 24 Order number: 2 608 640 431
