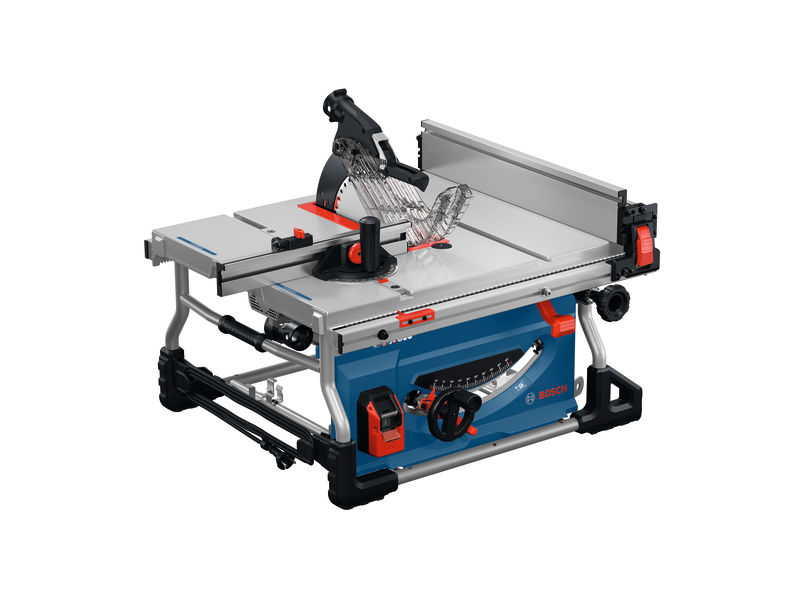

Table saw Bosch GTS100-254, CT

Cabinet installers, carpenters and framers often struggle to maintain accuracy on long rip cuts. The PRO HEAVY DUTY GTS100-254 table saw offers unrivalled performance with best-in-class 2200 W power and 100 mm cutting height, eliminating the need to flip the workpiece and reducing time and effort. Its convenient rack-and-pinion fence ensures precise and effortless rip cuts up to 825 mm. Designed for job-site safety and convenience, the tool has two dust ports compatible with Click & Clean systems, unique clamping zones, compatibility with a featherboard for the rip fence, as well as soft start and a fast braking system for greater protection. You can achieve precise bevel cuts without additional tools at angles from 0° to -2° and 45° to 47°, using intuitive automatic reset to the standard 0° and 45° angles – ideal for efficient work.

Key features

• Best-in-class cutting height of 100 mm: eliminates the need to flip the workpiece, ensuring faster and more precise long cuts
• Precise rip cuts up to 825 mm: the rack-and-pinion fence ensures unrivalled precision
• Two dust ports, unique clamping zones, featherboard compatibility, fast braking system and soft start function to improve user protection and comfort during use
• Tool-free bevel angle adjustment with automatic reset at 0° and 45°: so you can focus on your craft without distractions

Technical data

• Rated power: 2 200 W
• Table dimensions: 713 x 579 mm
• Tool dimensions (length × width × height): 694 x 713 x 363 mm
• No-load speed: 4 500 rpm
• Saw blade diameter: 254 mm
• Cutting height 90°: 100 mm
• Cutting height 45°: 68 mm
• Blade bore Ø: 30 mm
• Bevel angle adjustment: 47 ° V / -2 ° P
• Weight: 28,7 kg
• Packaging dimensions (width × length × height): 770 x 770 x 405 mm

Scope of delivery

• Hex key Order number: 1 619 PS3 582
• Extraction adapter Order number: 1 619 PS3 515
• Parallel guide Order number: 1 619 PS5 064
• Blade guard with extraction adapter Order number: 1 619 PS5 065
• Ring spanner Order number: 1 619 PS5 059
• Profile rail Order number: 1 619 PS5 067
• Push stick Order number: 1 619 PS4 987
• Mitre gauge
• 1 × circular saw blade, Optiline Wood, 254 × 2,8/1,8 × 30 mm, 24 Order number: 2 608 838 412
• Cardboard box
